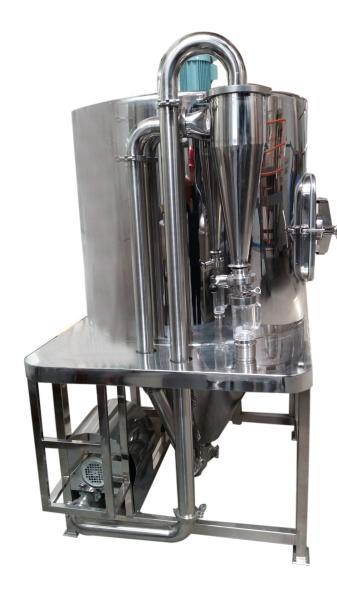

LT-5 Lab Scale Spray Dryer for Powders
Product Description
The spray volume is 1-5 kg/h. Utilizing the frequency control
centrifugal atomizer, the LT-5 lab scale spray dryer for powders
can dry materials such as solutions, emulsions, suspending liquids
and paste liquids into powders. Fixed or movable structure is
alternative, and it is flexible and convenient with high speed and
high efficiency. It is suitable to heat-sensitive materials.
LT series lab spray dryer has been used in enterprises, colleges
and universities, scientific research institutions and other
industries. According to the characteristics of different products
of users, it can explore the ideal process conditions of its spray
drying through experiments, which has laid a solid foundation for
the industrial production of products.
Working Principle
After being sent into the centrifugal atomizer by a feed pump, the
freed liquid is then atomized into droplets. Heat-exchange carries
out between the droplets and hot air, and material is dried into
powder in a very short time. powder is collected by a barrel at the
bottom of the tower or cyclone separator. LT-series lab scale spray
drying machine is an ideal device to dry feed liquid into powder
for one-time continuous production.
Technical Specifications of Lab Spray Drying Equipment
| Model | LT-5 |
| Material | SUS304, SUS316L, Ti |
| Inlet Temperature (℃) | 140-350℃ |
| Out Temperature (℃) | 80-90℃ |
| Max. Water Evaporation Capacity (kg/h) | 1-5kg/h |
| Applications | Chemicals processing, food processing, etc. |
| Transmission Form of Centrifugal Spray Head | Compressed air drive |
| Atomization Rotated Speed (RPM) | 25000 |
| Spray Disc Diameter (mm) | 50 |
| Heating Method | Electric heating |
| Electric Heating Maximum Power (KW) | 18Kw |
| Dimensions (L×W×H) mm | 1601*1500*1801 |
| Dry Powder Recovery | ≥95% |
Key Features
* Short drying time, suitable especially for thermal sensitive
material and high viscosity material like medical concentrate.
* Easy operation, convenient adjusting, easy to disassemble and
clean.
* Various particle size available by adjusting the spray rpm, spray
disc, liquid concentrate and air etc.
* Can get various final moisture by adjusting the spray volume and
outlet air temp.
* Multiple dust collector used to ensure no material loss.
Application Drying Material
| Industry | Drying Material |
| Chemical Industry | Sodium (potassium) fluoride, basic dyestuff, amino acid, catalyst,
dye intermediate, compound fertilizer, white carbon black, etc. |
| Plastic Resin | AB, ABS emulsion, urea resin, phenolic resin, PE, PVC, etc. |
| Food Industry | Oats, coffee, instant tea, flavoring, protein, hydrasate, soybean
protein, Peanut protein, etc. |
| Sugar | Corn speep liquor, corn starch, glucose, pectin, maltose, potassium
sorbate, etc. |
| Ceramic Industry | Aluminum oxide, tile material, magnessium oxide, talcum powder,
etc. |
