3.LT High Speed Centrifugal Spray Drying Equipment
Application
Food and plants: oats, chicken juice, coffee, instant tea,
seasoning spices meat, protein, soybeans, peanut protein,
hydrolysates, and so on.
Carbohydrates: corn steep liquor, corn starch, glucose, pectin,
maltose, potassium sorbate, and the like. Chemical industry:
battery raw materials, basic dye pigments, dye intermediates,
fertilizer, formaldehyde silicic acid, catalysts, agents, amino
acids, silica, and so on.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum
powder, and so on
Product Description

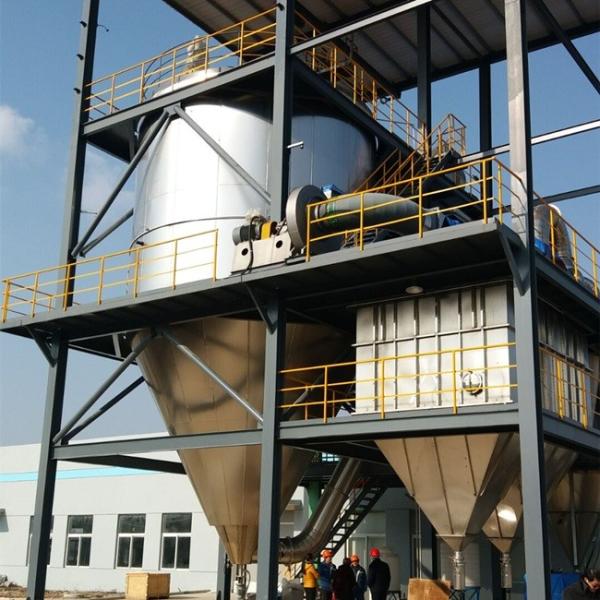

LT high speed centrifugal spray drying equipment is a kind of
drying process equipment. It can make the materials of solution,
emulsion, suspension and paste liquid into dry powder, fine and
medium particle products through spray drying. It has fast drying
speed, high efficiency, few processes, and saves manpower.
LT series high speed centrifugal spray drying equipment is
especially suitable for heat-sensitive materials, which is
beneficial to increase the output and obtain good process
technology and economic benefits. Widely used in fine chemicals,
ceramic materials, food, biology, Chinese and Western medicine,
environmental protection and other industries.
Main Technical Parameter
| Model | LT-5 | LT-25 | LT-50 | LT-150 | LT300-2000 |
| Inlet Temperature (℃) | 140-350 ℃ | 140-350 ℃ | 140-350 ℃ | 140-350 ℃ | 140-350 ℃ |
| Out Temperature (℃) | 80-90 ℃ | 80-90 ℃ | 80-90 ℃ | 80-90 ℃ | 80-90 ℃ |
| Max. Water Evaporation Capacity (kg/h) | 5 | 25 | 50 | 150 | 300-2000 |
| Transmission Form of Centrifugal Spray Head | Compressed air drive | Mechanical transmission |
| Atomization Rotated Speed (RPM) | 25000 | 22000 | 21500 | 18000 | 15000 |
| Spray Disc Diameter (mm) | 50 | 102 | 108 | 150 | 180-340 |
| Heating Sources (Option) | Electricity | Electricity | Electricity + steam, fuel oil, gas | Electricity + steam, fuel oil, gas | Up to the user |
| Electric Heating Maximum Power (KW) | 12 | 45 | 81 | 99 | Customized |
| Dimensions (L×W×H) m | 1.8×0.93×2.2m | 3×2.7×4.26m | 3.7×3.2×5.1m | 5.5×4.5×7m | Customized |
| Dry Powder Recovery | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
Remarks: Water evaporation capacity depends material property,
solidcontent, warmairinlet & outlet temperature.
Features and Benefits
* Fast drying speed. When the material is atomized by the
centrifugal atomizing disc, the surface area is greatly increased.
In the high-temperature airflow, 95-98% of the water can be
evaporated instantly, and the drying time is only a few seconds.
* The co-current spray drying method can make the droplets flow in
the same direction as the hot air. Although the temperature of the
hot air is high, because the hot air enters the drying chamber and
immediately contacts the spray droplets, the indoor temperature
drops sharply, so that the drying material is not overheated. , so
it is also suitable for drying heat-sensitive materials.
* Wide range of use. According to the characteristics of the
material, it can be dried with hot air or molded with cold air. A
large number of products with very different characteristics can be
produced by this drying equipment. The commonly used types include:
biological fermentation, biological extraction, Chinese and Western
medicines, polymers and resins, dyes, colors, ceramic materials,
electronic materials , glass, rust remover, insecticides,
carbohydrates, dairy and egg products, tannic acid, non-staple food
in slaughterhouses, blood and fish products, detergents and
surfactants, fertilizers, organic compounds class, inorganic
compounds class.
* Since the drying process is completed in an instant, the
particles of the product can basically keep the spherical shape of
droplets, and the product has good dispersibility, fluidity and
solubility.
* The production process is simplified and the operation is
convenient. Spray drying is usually used for special materials with
solid content of 10~70% and good fluidity, even if the moisture
content is as high as 90%, it can be dried into powder products at
one time. After most of the materials are spray-dried to collect
finished products, there is no need for secondary drying, crushing
and screening, which not only simplifies the production process,
but also reduces the production process and ensures the purity of
the finished product. The particle size, bulk density and water
content of the product are within a certain range and can be
adjusted by changing the operating conditions, and the sequence of
production, management and operation is convenient.
* In order to prevent the material from being polluted and prolong
the life of the equipment, all parts in contact with the material
are made of SUS304 stainless steel on-off device.
Types of Dry Materials (Parts)
| * Polymers and resins | * Tannic acid |
| * Dyes, colors, pigments | * Non-staple food, blood and fish products in slaughterhouses |
| * Ceramic materials, glass ceramic sand | * Detergents and surface stains |
| * Rust remover fungicides insecticides | * Ingredients |
| * Carbohydrates and similar products | * Organic chemicals |
| * Dairy and eggs | * Inorganic chemicals |
| * Food and plant extracts | * Cellulose |
| * Chinese and Western medicines, biological fermentation products | * By-products and other sundries, etc |
